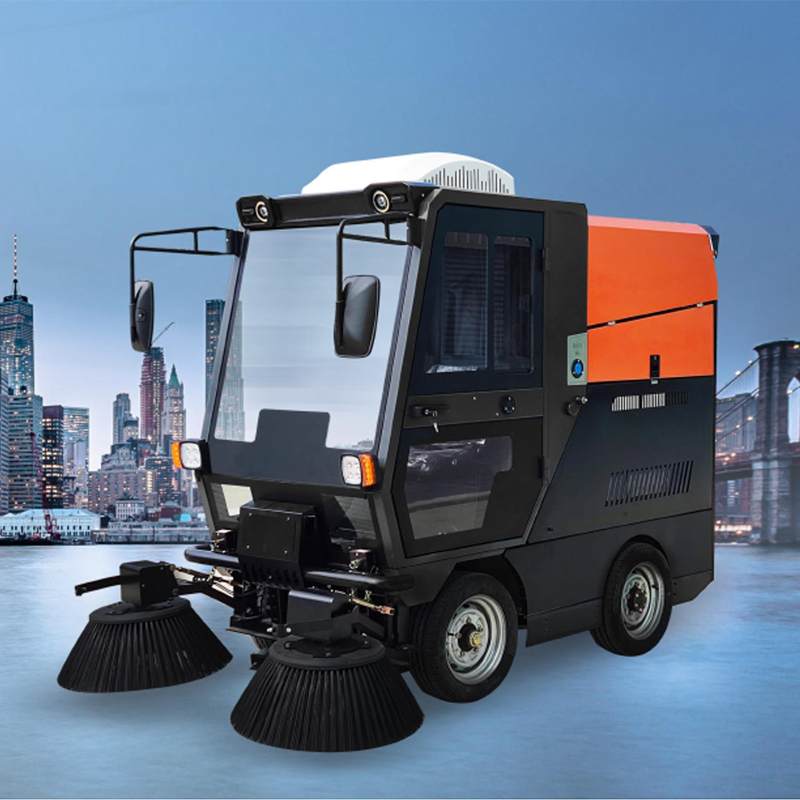

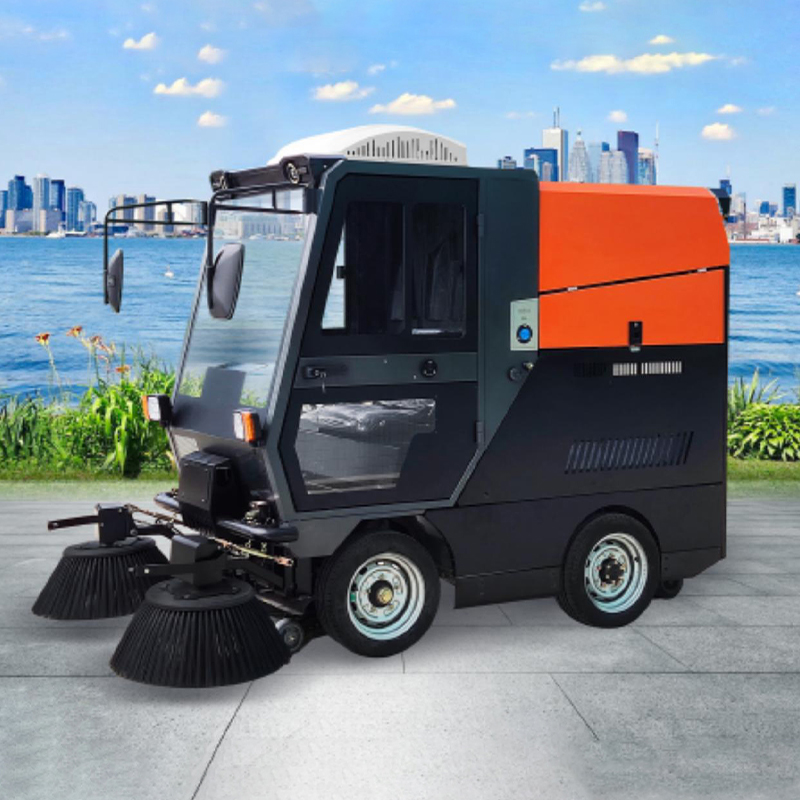

Land Cruiser No. 1 Electric Ride-On Sweeper

Land Cruiser No. 1 Electric Ride-On Sweeper

Land Cruiser One

Consult

Features
Technical Indicators
Overall Dimension

Four-wheel pure suction, international 240 hanging bucket ABM Land Cruiser No. 1 four-wheel pure suction, national standard 240L hanging bucket, no need to dump garbage and no secondary pollution, super suction, large-capacity lithium battery, long battery life, super large water tank, optional high-pressure flushing, easy to cope with various complex operation scenes, one-time efficient cleaning, optional heating and cooling air conditioning and multimedia to improve the comfort of operation. Can be equipped with high-pressure water gun High-power drive Rare earth DC brushless fan motor Built-in national standard 240L trash can Vacuum tire High and stable speed
Project Name
Unit
parameter
List of main technical advantages
Sweeping width
mm
1400-1800
1、It can be equipped with the Italian imported smart cleaning IoT system: the fully integrated circuit control panel is connected, and the machine operation status can be remotely controlled through computers and mobile phones, including the machine's walking trajectory, real-time working data monitoring, the working status of the whole machine and each component, and the fault code is transmitted to the mobile phone, so that managers can see it at a glance and service support can be one step ahead.
Work efficiency
m²/h
12600
Gradeability
%
25
2、Strong suction: It changes the traditional roller brush transmission mode and adopts super negative pressure to absorb garbage to improve cleanliness.
Suction port diameter
mm
180
3、It adopts an ultra-large torque reduction drive axle with a designed 3 times overload capacity.
It is stable and reliable, and its climbing ability is comparable to that of a car.
Side brush diameter
mm
800
4、Water mist dust removal: effectively reduce secondary dust pollution.
Power Source
V
72
5、Patented negative pressure suction structure: Patented negative pressure suction structure cleans the floor more thoroughly and reduces consumables costs.
Standard battery life
h
6-8
6、Fully enclosed structure: no fear of wind, rain, flying sand and rocks, adaptable to operations in any weather.
Turning Radius
mm
2000
7、Adopting national standard 240L environmentally friendly trash can, the trash can space is 100% utilized; the one-button self-unloading function is convenient and quick to reduce secondary pollution and improve work efficiency.
Water tank capacity
L
200
8、Multimedia equipment: equipped with radio, car music and USB charging, the work process is no longer boring and you can enjoy the fun of cleaning.
9、One button turns on the fully automatic operation mode, which is easy to operate.
Trash bin capacity
L
240
10、The whole vehicle adopts a lightweight design with high stability and is easy to maintain and operate.
Travel speed
km/h
15
11、Dual-mode operation: Dual-mode operation on dry and wet ground, completely replacing manual operation.
Cleaning speed
km/h
5-7
12、High-pressure water spray is convenient for washing daily stains, garbage under the vehicle, etc.
Drive power
W
7500
13、Equipped with lithium battery to extend the working time.
Total Power
W
14300
14、Optional high-pressure flushing can flush the floor at the same time to improve work efficiency.
Operating power
W
Fan 3000w + hydraulic 1500w+ high pressure
Flush 1500W +
side brush 400W x 2 = 6800W
15、Optional heating and cooling inverter air conditioner can improve working comfort.
Net weight
kg
1200
16、An extra-large LED display screen can be optionally installed for mobile advertising.
Machine size
mm
Length 2900*
Width 1800*
Height 2180
17、Optional fog cannon for air brake elimination.

Project Name	Unit	parameter	List of main technical advantages
Sweeping width	mm	1400-1800	1、It can be equipped with the Italian imported smart cleaning IoT system: the fully integrated circuit control panel is connected, and the machine operation status can be remotely controlled through computers and mobile phones, including the machine's walking trajectory, real-time working data monitoring, the working status of the whole machine and each component, and the fault code is transmitted to the mobile phone, so that managers can see it at a glance and service support can be one step ahead.
Work efficiency	m²/h	12600
Gradeability	%	25	2、Strong suction: It changes the traditional roller brush transmission mode and adopts super negative pressure to absorb garbage to improve cleanliness.
Suction port diameter	mm	180	3、It adopts an ultra-large torque reduction drive axle with a designed 3 times overload capacity. It is stable and reliable, and its climbing ability is comparable to that of a car.
Side brush diameter	mm	800	4、Water mist dust removal: effectively reduce secondary dust pollution.
Power Source	V	72	5、Patented negative pressure suction structure: Patented negative pressure suction structure cleans the floor more thoroughly and reduces consumables costs.
Standard battery life	h	6-8	6、Fully enclosed structure: no fear of wind, rain, flying sand and rocks, adaptable to operations in any weather.
Turning Radius	mm	2000	7、Adopting national standard 240L environmentally friendly trash can, the trash can space is 100% utilized; the one-button self-unloading function is convenient and quick to reduce secondary pollution and improve work efficiency.
Water tank capacity	L	200	8、Multimedia equipment: equipped with radio, car music and USB charging, the work process is no longer boring and you can enjoy the fun of cleaning.
Water tank capacity	L	200	9、One button turns on the fully automatic operation mode, which is easy to operate.
Trash bin capacity	L	240	10、The whole vehicle adopts a lightweight design with high stability and is easy to maintain and operate.
Travel speed	km/h	15	11、Dual-mode operation: Dual-mode operation on dry and wet ground, completely replacing manual operation.
Cleaning speed	km/h	5-7	12、High-pressure water spray is convenient for washing daily stains, garbage under the vehicle, etc.
Drive power	W	7500	13、Equipped with lithium battery to extend the working time.
Total Power	W	14300	14、Optional high-pressure flushing can flush the floor at the same time to improve work efficiency.
Operating power	W	Fan 3000w + hydraulic 1500w+ high pressure Flush 1500W + side brush 400W x 2 = 6800W	15、Optional heating and cooling inverter air conditioner can improve working comfort.
Net weight	kg	1200	16、An extra-large LED display screen can be optionally installed for mobile advertising.
Machine size	mm	Length 2900* Width 1800* Height 2180	17、Optional fog cannon for air brake elimination.
