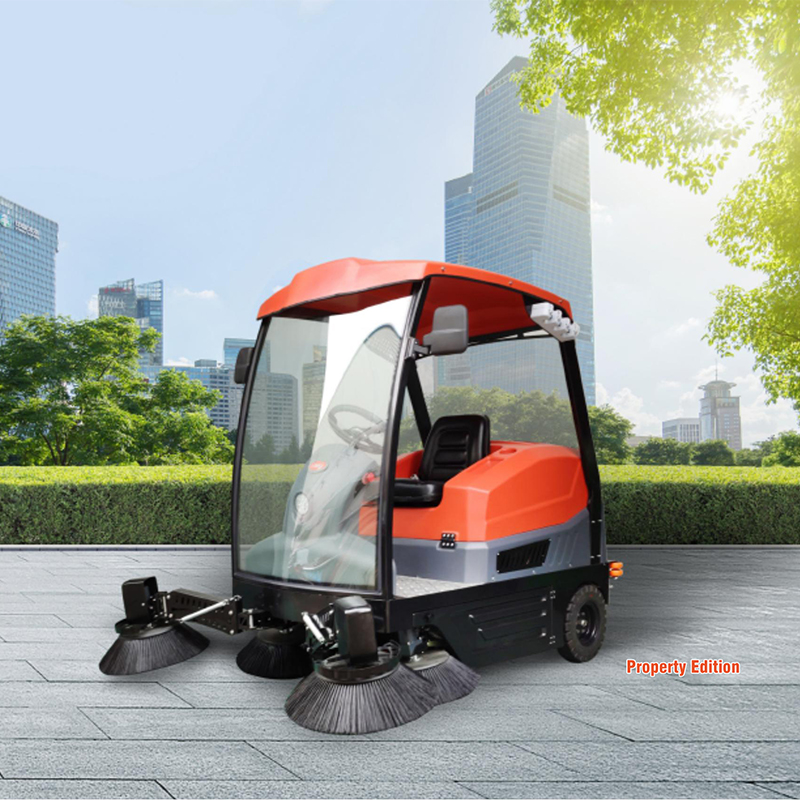

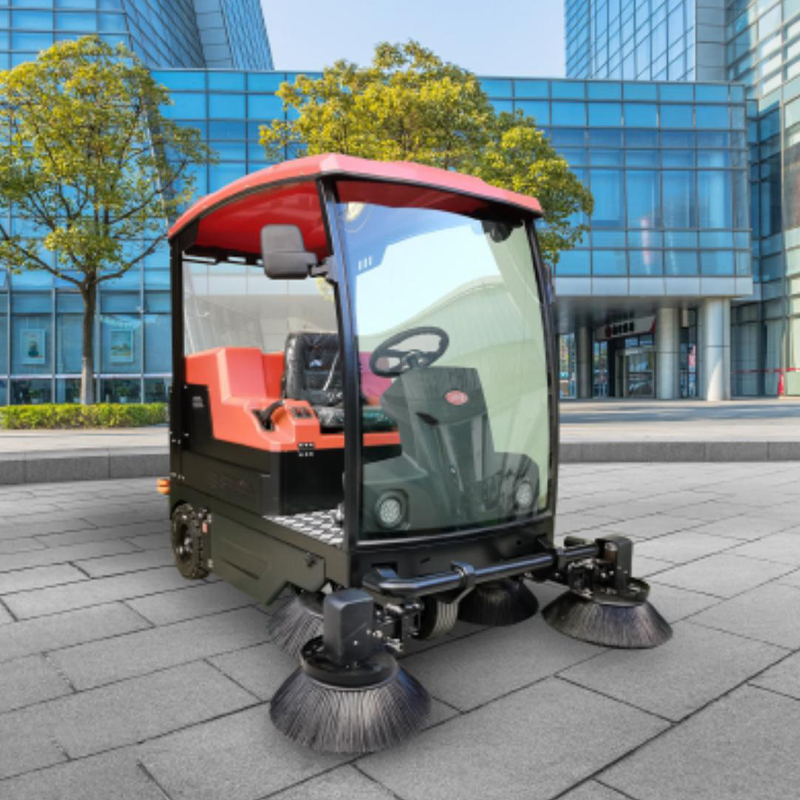

Magic Ranger Electric Ride-On Sweeper

Magic Ranger

Consult

Features
Technical Indicators
Overall Dimension

Dual brushes, flexible and intelligent integration ABM Magic Ranger sweeper adopts industry-leading highly integrated electronic control technology and Italian imported intelligent Internet of Things system. It has super suction, a new intelligent management system, and a sweeping width of 1400~1950mm that can be adjusted arbitrarily. It is flexible in passability and is suitable for large property communities, scenic spots, urban roads, and cleaning areas of 60,000~90,000 square meters. Magic Ranger Innovative Advantages 1. Italian imported intelligent cleaning Internet of Things system Italian imported intelligent cleaning Internet of Things system, fully integrated circuit control board docking, can remotely control the machine operation status through computers and mobile phones, including machine walking trajectory, real-time work data monitoring, the working status of the whole machine and each component, and accurately transmit faults to mobile phones, so that managers can see it at a glance, service support is one step ahead, and after-sales service costs are reduced. 2. Chip-type highly integrated electronic control system Chip-type highly integrated electronic control system, advanced technology level, automatic short-circuit protection, automatic stop of overcurrent protection, simple and fast machine maintenance. 3. Innovative patented shock absorption Innovative patented shock absorption: The shock absorption system of all models adopts a double-rod balanced connection structure, combined with high-quality hydraulic damping shock-absorbing springs, the shock absorption effect is stable and does not shake, greatly improving the comfort of control, and reducing failures caused by body vibration. 4. Humanized car handbrake Sedan-style handbrake, comfortable and high-end feel, easy to operate, and highly reliable. 5. Multifunctional smart lifting arm front brush 1. Intelligent anti-collision system for the front brush of the lifting arm: forward and backward 180° all-round protection, combined with anti-collision buffer mechanism, greatly improves the service life of the machine. 2. The height of the front brush of the lifting arm can be adjusted electrically: the lifting arm can be positioned at any height within the lifting height range, which is convenient for cleaning uneven roads such as flower beds, roadbeds, shallow pits, etc. 3. The electric retraction function of the lifting arm: when passing through narrow roads (such as park aisles), the front brush of the lifting arm can be electrically retracted to improve the passing performance. 6. High-quality rare earth motor with super dust suction system High-quality suction motor: 600W high-quality rare earth permanent magnet motor, strong torque, high speed, stable performance. 7. Convenient filter cleaning External high-pressure dust blowing duct, daily filter cleaning, no need to remove the filter, simple and fast. 8. Optional high-pressure blower Can blow out garbage from the bottom of the car and the roadbed lawn, etc., to assist the sweeper in cleaning. 9. Can be equipped with cruise control
Project Name
Unit
parameter
List of main technical advantages
Sweeping width
MM
1950
Smart cleaning IoT system imported from Italy
The smart cleaning IoT system imported from Italy is connected to a fully integrated circuit control panel. The machine's operating status can be remotely controlled via a computer or mobile phone, including the machine's travel trajectory, real-time working data measurement, the working status of the entire machine and each component, and the fault code is transmitted to the mobile phone, allowing managers to see it at a glance and provide service support one step ahead.
Maximum cleaning efficiency
M²/H
19500
  Chip-type highly integrated electronic control system
Chip-type highly integrated electronic control system, advanced technology level, automatic short-circuit protection, automatic shutdown in case of overcurrent, simple and quick machine maintenance.
Battery life
H
5-7 (Property version)
6-8 (Sanitation version)
Multifunctional smart lifting arm
Front brush----Function 1
The front brush of the lifting arm has an intelligent anti-collision system: 180° all-round protection when moving forward and backward, and the anti-collision buffer mechanism greatly increases the service life of the machine.
Trash bin capacity
L
190
Filter area
(filter element)
M²
10
Multifunctional smart lifting arm
Front brush----Function 2
The height of the front brush of the lifting arm can be adjusted electrically: the lifting arm can be positioned at any height within the lifting height range, which is convenient for cleaning uneven roads such as flower beds, roadbeds, shallow pits, etc.
Main brush size
MM
700
  Multifunctional smart lifting arm
Front brush---Function 3
Electric retraction function of the lifting arm: When passing through narrow roads (such as park aisles), the front brush of the lifting arm can be electrically retracted to improve the passing performance.
Side brush size
MM
550
Maximum driving speed
KM/H
12
  Battery
It uses maintenance-free batteries from major domestic brands, and lithium batteries are optional.
Cleaning speed
KM/H
7-10
  Patented shock absorption system
Reduce the machine failure rate caused by vibration and improve the operating comfort.
Gradeability
%
35
  Super powerful vacuum system
(1) High-quality suction motor: 600W high-quality rare earth permanent magnet motor, strong torque, high speed, stable performance;
(2) Strong negative pressure centrifugal aluminum alloy fan blade: large exhaust volume, reliable quality;
(3) Super large imported filter: 10 square meters of imported Toray polyester drum filter, outstanding dust control ability.
Power Source
V
48
Machine weight
KG
700
Operating power
W
Main brush 700+ fan 600+
Side brush 100x4+ dust detector 80
  Drive axle
Ultra-quiet continuously variable speed rear axle, aluminum alloy housing, profiled and ground gear design, no noise, light weight, no oil leakage, more durable and reliable.
Drive power
W
2.5T
2500(AC drive)
  Controller
Adopt American KELLY brand controller to ensure stable power output and excellent performance.
Total Power
W
4280(AC drive)
  Easy to clean filter
Dispose of the dust blowing duct and daily filter cleaning without removing the filter, which is simple and quick.
  High efficiency
The highest working efficiency per hour can reach up to 19500m²/h, and one machine can replace 10-14 workers.
Mist spray water tank
L
60
Easy maintenance
The front-opening design allows all internal components to be clearly visible, and cleaners can also perform simple troubleshooting.
Upgraded battery life

Lithium battery option
  Stable performance
Industrial-grade design and manufacturing standards, stable performance and low maintenance cost.
High pressure hair dryer

Optional
Car handbrake, safe and reliable
Super strong braking performance, can stop within 2 meters at full speed, and is equipped with an emergency power-off switch.
Size (length*width*height)
MM
2400*1700/
1950*1900
  Optional auxiliary functions
High-pressure hair dryer can blow away the garbage hidden under parking lots and the garbage in dead corners of the roadbed.

Project Name	Unit	parameter	List of main technical advantages
Sweeping width	MM	1950	Smart cleaning IoT system imported from Italy	The smart cleaning IoT system imported from Italy is connected to a fully integrated circuit control panel. The machine's operating status can be remotely controlled via a computer or mobile phone, including the machine's travel trajectory, real-time working data measurement, the working status of the entire machine and each component, and the fault code is transmitted to the mobile phone, allowing managers to see it at a glance and provide service support one step ahead.
Maximum cleaning efficiency	M²/H	19500	Chip-type highly integrated electronic control system
Maximum cleaning efficiency	M²/H	19500		Chip-type highly integrated electronic control system, advanced technology level, automatic short-circuit protection, automatic shutdown in case of overcurrent, simple and quick machine maintenance.
Battery life	H	5-7 (Property version) 6-8 (Sanitation version)
Battery life	H	5-7 (Property version) 6-8 (Sanitation version)	Multifunctional smart lifting arm Front brush----Function 1	The front brush of the lifting arm has an intelligent anti-collision system: 180° all-round protection when moving forward and backward, and the anti-collision buffer mechanism greatly increases the service life of the machine.
Trash bin capacity	L	190	Multifunctional smart lifting arm Front brush----Function 1
Filter area (filter element)	M²	10	Multifunctional smart lifting arm Front brush----Function 2	The height of the front brush of the lifting arm can be adjusted electrically: the lifting arm can be positioned at any height within the lifting height range, which is convenient for cleaning uneven roads such as flower beds, roadbeds, shallow pits, etc.
Main brush size	MM	700	Multifunctional smart lifting arm Front brush---Function 3	Electric retraction function of the lifting arm: When passing through narrow roads (such as park aisles), the front brush of the lifting arm can be electrically retracted to improve the passing performance.
Side brush size	MM	550	Multifunctional smart lifting arm Front brush---Function 3
Maximum driving speed	KM/H	12	Battery	It uses maintenance-free batteries from major domestic brands, and lithium batteries are optional.
Cleaning speed	KM/H	7-10	Patented shock absorption system	Reduce the machine failure rate caused by vibration and improve the operating comfort.
Gradeability	%	35	Super powerful vacuum system	(1) High-quality suction motor: 600W high-quality rare earth permanent magnet motor, strong torque, high speed, stable performance; (2) Strong negative pressure centrifugal aluminum alloy fan blade: large exhaust volume, reliable quality; (3) Super large imported filter: 10 square meters of imported Toray polyester drum filter, outstanding dust control ability.
Power Source	V	48
Machine weight	KG	700
Operating power	W	Main brush 700+ fan 600+ Side brush 100x4+ dust detector 80	Drive axle	Ultra-quiet continuously variable speed rear axle, aluminum alloy housing, profiled and ground gear design, no noise, light weight, no oil leakage, more durable and reliable.
Drive power	W	2.5T 2500(AC drive)	Controller	Adopt American KELLY brand controller to ensure stable power output and excellent performance.
Total Power	W	4280(AC drive)	Easy to clean filter	Dispose of the dust blowing duct and daily filter cleaning without removing the filter, which is simple and quick.
Total Power	W	4280(AC drive)	High efficiency	The highest working efficiency per hour can reach up to 19500m²/h, and one machine can replace 10-14 workers.
Mist spray water tank	L	60	Easy maintenance	The front-opening design allows all internal components to be clearly visible, and cleaners can also perform simple troubleshooting.
Upgraded battery life		Lithium battery option	Stable performance	Industrial-grade design and manufacturing standards, stable performance and low maintenance cost.
High pressure hair dryer		Optional	Car handbrake, safe and reliable	Super strong braking performance, can stop within 2 meters at full speed, and is equipped with an emergency power-off switch.
Size (lengthwidthheight)	MM	24001700/ 19501900	Optional auxiliary functions	High-pressure hair dryer can blow away the garbage hidden under parking lots and the garbage in dead corners of the roadbed.
