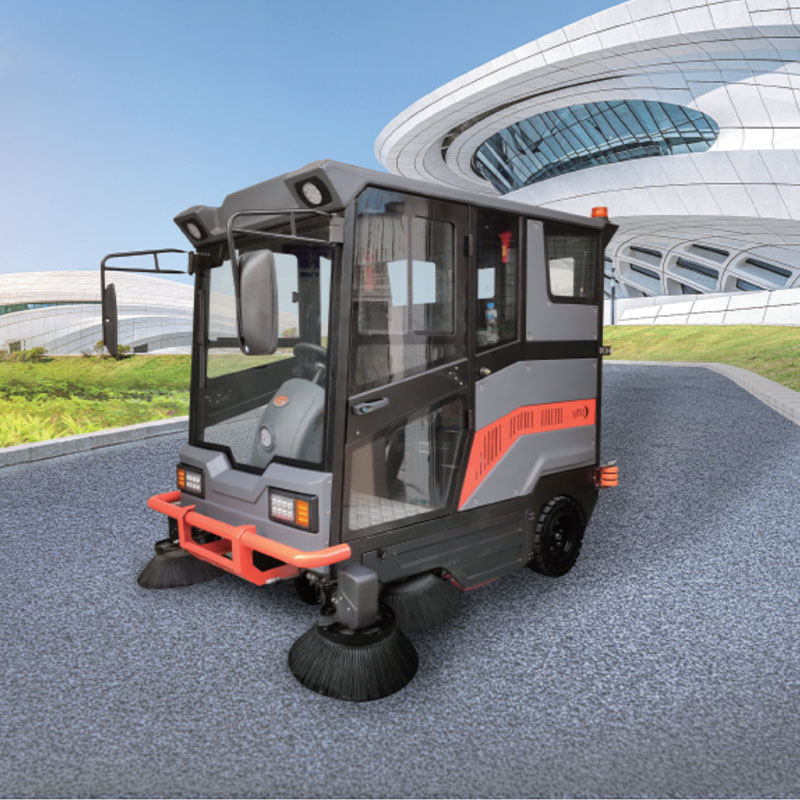

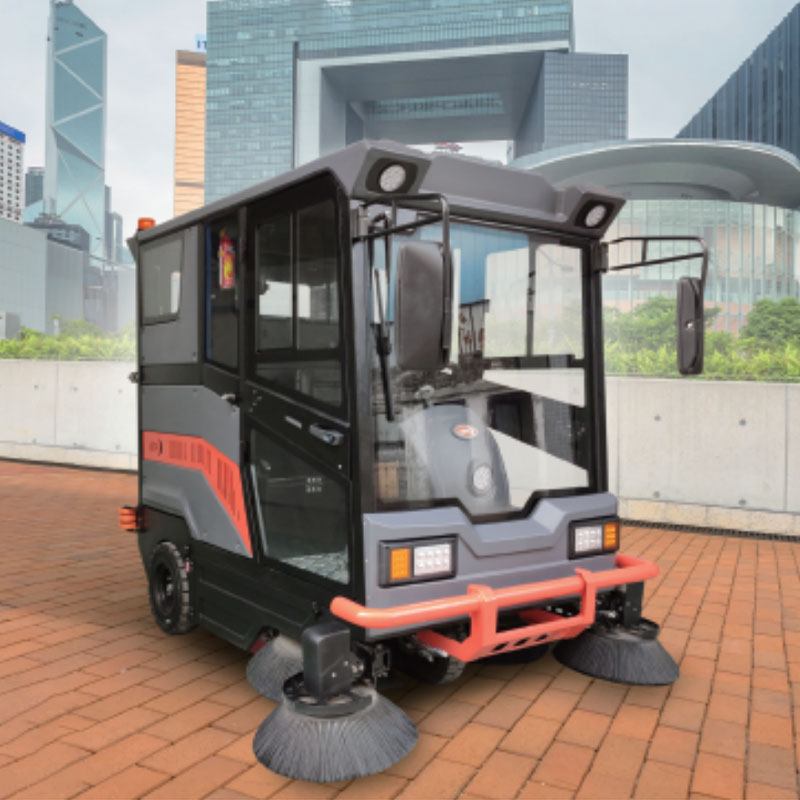

Super Soldier Electric Ride-On Sweeper

Super Soldier
Pilot-level 850MM super-large main brush all-round fighter
ABM Super Soldier sweeper adopts pilot-level 850MM super-large main brush, all-round fighter, highly integrated electronic control system, Italian imported smart Internet of Things, fully enclosed super warrior, windproof, sunshade and rainproof, the best choice for operations in colder northern regions.
Italian imported smart cleaning Internet of Things system, fully integrated circuit control board docking, can remotely control the machine operation status through computers and mobile phones, including machine walking trajectory, real-time work data monitoring, whole machine and each component working status, fault code transmitted to mobile phone, so that managers can see at a glance, service support one step ahead. Chip-type highly integrated electronic control system.
Chip-type highly integrated electronic control system, advanced technology level, short-circuit automatic protection, automatic stop of overcurrent protection, simple and fast machine maintenance. Large-capacity storage box The newly added super-large capacity storage box is more user-friendly and has strong applicability.
Ultra-wide and highly wear-resistant main brush The main brush width is up to 850mm, and the cleaning effect is completely upgraded. The multimedia device is equipped with a radio, car music and USB charging, so you can enjoy the fun of cleaning during work. Humanized car handbrake
Sedan-style handbrake, comfortable and high-end feel, easy to operate, and highly reliable. Convenient filter cleaning External dust blowing duct, daily filter cleaning, no need to remove the filter, simple and fast.

Project Name

Unit

Parameter

Main technical advantages

Cleaning width

MM

2000

Smart cleaning IoT system imported from Italy

The Italian imported smart cleaning IoT system is connected to the fully integrated circuit control panel, and the machine operation status can be remotely controlled through computers and mobile phones, including the machine's walking trajectory, real-time working data monitoring, the working status of the whole machine and each component, and the fault code is transmitted to the mobile phone, so that managers can see it at a glance and provide service support one step ahead.

Maximum cleaning efficiency

M²/H

20000

Battery life

H

6-8

Garbage bin capacity

L

240

Chip-type highly integrated electronic control system

Chip-type highly integrated electronic control system, advanced technology level, automatic short circuit protection, automatic overcurrent protection, automatic stop operation, simple and quick machine maintenance.

Filter area (filter element)

14

Patented shock absorption system

Patented design reduces machine failures caused by vibration and improves operating comfort.

Main brush size

MM

850

Cruise control

Adding cruise control makes the car easier to control.

Side brush diameter

MM

550

Super powerful vacuum system

(1) High-quality suction motor: 600W high-quality rare earth permanent magnet motor, strong torque, high speed, stable performance;

(2) Strong negative pressure centrifugal aluminum alloy fan blade: large exhaust volume, reliable quality;

(3) Super large imported filter: 14 square meters of imported Toray polyester drum filter, outstanding dust control ability.

Maximum travel speed

KM/H

15

Cleaning speed

KM/H

7-10

Drive axle

Ultra-quiet continuously variable speed rear axle, aluminum alloy housing, profiled and ground gear design, no noise, light weight, no oil leakage, more durable and reliable.

Climbing ability

%

35

Power source

V

48

Easy to clean filter

External dust blowing duct, daily filter cleaning, no need to remove the filter, simple and quick.

Multimedia equipment

Equipped with a radio, in-car music and USB charging, the work journey is no longer boring and you can enjoy the fun of cleaning.

Machine weight

KG

1200

Fully enclosed structure

Fearless of wind, rain, flying sand and rocks, always ready around the clock.

Operating power

W

Main brush 700+ fan 600+

Side brush 100x4+ dust vibrator 80

Large storage box

The newly added extra-large storage box is more user-friendly and has strong applicability.

Driving power

W

3.5T

3500(AC drive)

240L extra large trash container

Reduce the number of dumping times and improve work efficiency.

Total power

W

5280(AC drive)

Extra wide main brush

The main brush width is up to 850mm, and the cleaning effect is completely upgraded.

Exposure spray water tank

L

100

High efficiency

The maximum working efficiency can reach 20,000m²/h, and one machine can replace 10-14 workers.

Dimensions (length*width*height)

MM

2550*2000*2000

Car handbrake, safe and reliable

Super strong braking performance, can stop within 2 meters at full speed, and is equipped with an emergency power-off switch.

Stable overall performance

Engineering-grade design, manufactured strictly in accordance with enterprise standards, stable performance and low maintenance cost.

×
