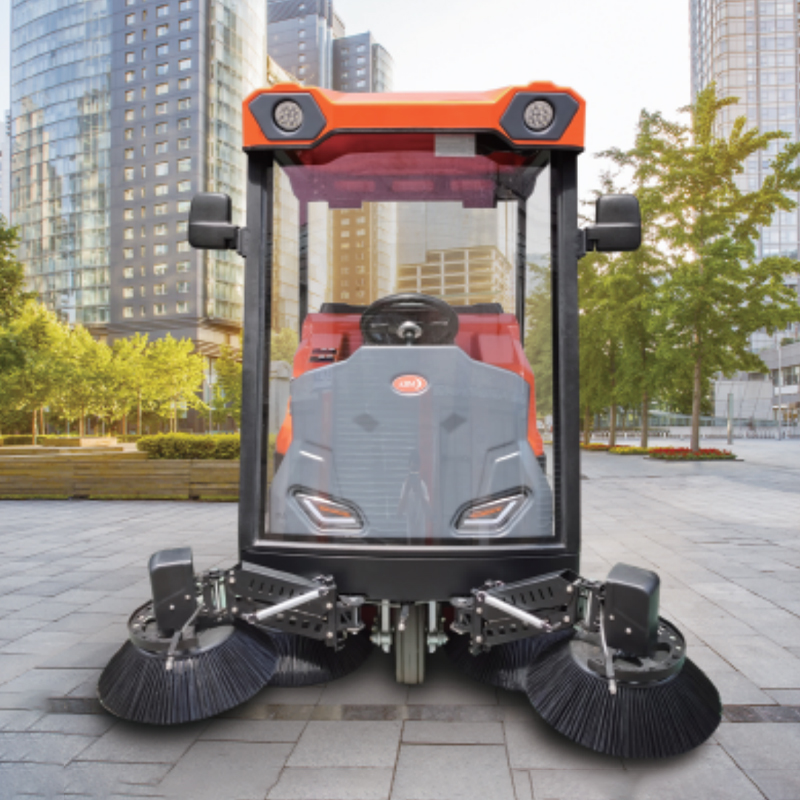

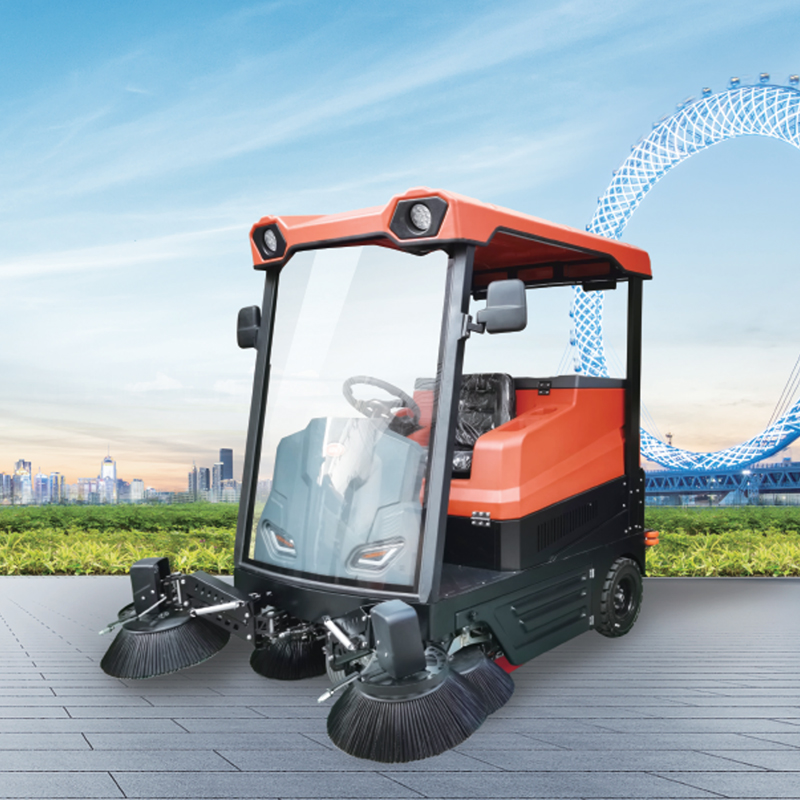

Ranger PLUS Electric Ride-On Sweeper

Ranger PLUS

Consult

Features
Technical Indicators
Overall Dimension

Comprehensive upgrade shocking launch ABM Ranger PLUS sweeper adopts industry-leading high-integration electronic control technology and Italian imported smart Internet of Things system. The whole vehicle is roto-molded, the configuration is fully upgraded, and the cost performance is improved again! Intelligent management system 4.0, the sweeping width is 1400~1950mm and can be adjusted arbitrarily, and the passability is flexible. It is suitable for large property communities, scenic spots, urban roads, and cleaning areas of 60,000~90,000 square meters. Italian imported smart cleaning Internet of Things system Italian imported smart cleaning Internet of Things system, fully integrated circuit control board docking, can remotely control the machine operation status through computers and mobile phones, including machine walking trajectory, real-time work data monitoring, the working status of the whole machine and each component, and accurately transmit the fault to the mobile phone, so that managers can see it at a glance, service support is one step ahead, and after-sales service costs are reduced. Chip-type high-integration electronic control system Chip-type high-integration electronic control system, advanced technology level, automatic short-circuit protection, automatic stop of overcurrent protection, simple and fast machine maintenance. Innovative patented shock absorption Innovative patented shock absorption: The shock absorption system of all models adopts a double-rod balanced connection structure, combined with high-quality hydraulic damping shock-absorbing springs, the shock absorption effect is stable and does not shake, greatly improving the comfort of control, and reducing failures caused by body vibration. Humanized car handbrake Sedan-style handbrake, comfortable and high-end feel, easy to operate, and highly reliable. Multifunctional smart lifting arm front brush 1. Intelligent anti-collision system for the front brush of the lifting arm: forward and backward 180° all-round protection, combined with anti-collision buffer mechanism, greatly improves the service life of the machine. 2. The height of the front brush of the lifting arm can be adjusted electrically: the lifting arm can be positioned at any height within the lifting height range, which is convenient for cleaning uneven roads such as flower beds, roadbeds, shallow pits, etc. 3. The electric retraction function of the lifting arm: when passing through narrow roads (such as park aisles), the front brush of the lifting arm can be electrically retracted to improve the passing performance.
Project Name
unit
parameter
List of main technical advantages
Cleaning width
MM
1950
Italian imported smart cleaning IoT system
The smart cleaning IoT system imported from Italy is connected to a fully integrated circuit control panel. The machine operation status can be remotely controlled through a computer or mobile phone, including the machine's walking trajectory, real-time working data measurement, the working status of the whole machine and each component, and the fault code is transmitted to the mobile phone, so that managers can see it at a glance and provide service support one step ahead.
Maximum cleaning efficiency
M-/H
19500
Chip-type highly integrated electronic control system
Chip-type highly integrated electronic control system, advanced technology level, automatic short-circuit protection, automatic shutdown in case of overcurrent, simple and quick machine maintenance.
Battery life
H
6-8
Multifunctional smart lifting arm
Front brush----Function 1
Intelligent anti-collision system for the front brush of the lifting arm: 180° all-round protection when moving forward and backward, combined with the anti-collision buffer mechanism, greatly improves the service life of the machine.
Trash bin capacity
L
190
Filter area
(filter element)
M²
10
Multifunctional smart lifting arm
Front brush----Function 2
The height of the front brush of the lifting arm can be adjusted electrically: the lifting arm can be positioned at any height within the lifting height range, so as to clean uneven roads such as flower beds, roadbeds, shallow pits, etc.
Main brush size
MM
700
Multifunctional smart lifting arm
Front brush---Function 3
Electric retraction function of the lifting arm: When passing through narrow roads (such as park aisles), the front brush of the lifting arm can be electrically retracted to improve the passing performance.
Side brush size
MM
550
Maximum travel speed
KM/H
12
Battery
It uses maintenance-free batteries from major domestic brands, and lithium batteries are optional.
Cleaning speed
KM/H
7-10
Patented shock absorption system
Reduce the machine failure rate caused by excessive movement and improve the operating comfort.
Climbing ability
%
35
Super powerful vacuum system
(1) High-quality suction motor: 600W high-quality rare earth permanent magnet motor, strong torque, high speed, stable performance;
(2) Strong negative pressure centrifugal aluminum alloy fan blade: large exhaust volume, reliable quality;
(3) Extra-large imported filter: 10 square meters of imported Toray polyester roller filter, outstanding dust control ability.
Power source
V
48
Whole machine inspection
KG
700
Drive axle
Ultra-quiet continuously variable speed rear axle, aluminum alloy housing, profiled and ground gear design, no noise, light weight, no oil leakage, more durable and more reliable.
Operating power
W
Main brush 700 + fan 600
+ side brush 100x4 + dust vibration 80
Controller
Adopt American KELLY brand controller to ensure stable power output and excellent performance.
Driving power
W
3.0T
3000(AC drive)
Easy to clean filter element
Dispose of the dust blowing duct and daily filter cleaning without removing the filter, which is simple and quick.
Total power
W
4780(AC drive)
High efficiency
The maximum working efficiency per hour can reach up to 19500m²h, and one machine can replace 10-14 workers.
Mist spray water tank
L
60
Easy maintenance
The front-opening design allows all internal components to be clearly visible, and cleaners can also perform simple troubleshooting.
Stable performance
Industrial-grade design and manufacturing standards, stable performance and low maintenance cost.
Upgraded battery life

Lithium battery option
Car handbrake, safe and reliable
Super strong braking performance, can stop within 2 meters at full speed, and is equipped with an emergency power-off switch.
Dimensions (length*width*height)
MM
2400*1950*1900
Optional auxiliary functions
High-pressure hair dryer can blow away the garbage hidden under parking lots and the garbage in dead corners of the roadbed.

Project Name	unit	parameter	List of main technical advantages
Cleaning width	MM	1950	Italian imported smart cleaning IoT system	The smart cleaning IoT system imported from Italy is connected to a fully integrated circuit control panel. The machine operation status can be remotely controlled through a computer or mobile phone, including the machine's walking trajectory, real-time working data measurement, the working status of the whole machine and each component, and the fault code is transmitted to the mobile phone, so that managers can see it at a glance and provide service support one step ahead.
Maximum cleaning efficiency	M-/H	19500
			Chip-type highly integrated electronic control system	Chip-type highly integrated electronic control system, advanced technology level, automatic short-circuit protection, automatic shutdown in case of overcurrent, simple and quick machine maintenance.
Battery life	H	6-8
			Multifunctional smart lifting arm Front brush----Function 1	Intelligent anti-collision system for the front brush of the lifting arm: 180° all-round protection when moving forward and backward, combined with the anti-collision buffer mechanism, greatly improves the service life of the machine.
Trash bin capacity	L	190
Filter area (filter element)	M²	10	Multifunctional smart lifting arm Front brush----Function 2	The height of the front brush of the lifting arm can be adjusted electrically: the lifting arm can be positioned at any height within the lifting height range, so as to clean uneven roads such as flower beds, roadbeds, shallow pits, etc.

Main brush size	MM	700	Multifunctional smart lifting arm Front brush---Function 3	Electric retraction function of the lifting arm: When passing through narrow roads (such as park aisles), the front brush of the lifting arm can be electrically retracted to improve the passing performance.
Side brush size	MM	550
Maximum travel speed	KM/H	12	Battery	It uses maintenance-free batteries from major domestic brands, and lithium batteries are optional.
Cleaning speed	KM/H	7-10	Patented shock absorption system	Reduce the machine failure rate caused by excessive movement and improve the operating comfort.
Climbing ability	%	35	Super powerful vacuum system	(1) High-quality suction motor: 600W high-quality rare earth permanent magnet motor, strong torque, high speed, stable performance; (2) Strong negative pressure centrifugal aluminum alloy fan blade: large exhaust volume, reliable quality; (3) Extra-large imported filter: 10 square meters of imported Toray polyester roller filter, outstanding dust control ability.
Power source	V	48
Whole machine inspection	KG	700	Drive axle	Ultra-quiet continuously variable speed rear axle, aluminum alloy housing, profiled and ground gear design, no noise, light weight, no oil leakage, more durable and more reliable.
Operating power	W	Main brush 700 + fan 600 + side brush 100x4 + dust vibration 80
			Controller	Adopt American KELLY brand controller to ensure stable power output and excellent performance.
Driving power	W	3.0T 3000(AC drive)	Easy to clean filter element	Dispose of the dust blowing duct and daily filter cleaning without removing the filter, which is simple and quick.
Total power	W	4780(AC drive)	High efficiency	The maximum working efficiency per hour can reach up to 19500m²h, and one machine can replace 10-14 workers.
Mist spray water tank	L	60	Easy maintenance	The front-opening design allows all internal components to be clearly visible, and cleaners can also perform simple troubleshooting.
			Stable performance	Industrial-grade design and manufacturing standards, stable performance and low maintenance cost.
Upgraded battery life		Lithium battery option	Car handbrake, safe and reliable	Super strong braking performance, can stop within 2 meters at full speed, and is equipped with an emergency power-off switch.
Dimensions (lengthwidthheight)	MM	240019501900	Optional auxiliary functions	High-pressure hair dryer can blow away the garbage hidden under parking lots and the garbage in dead corners of the roadbed.
